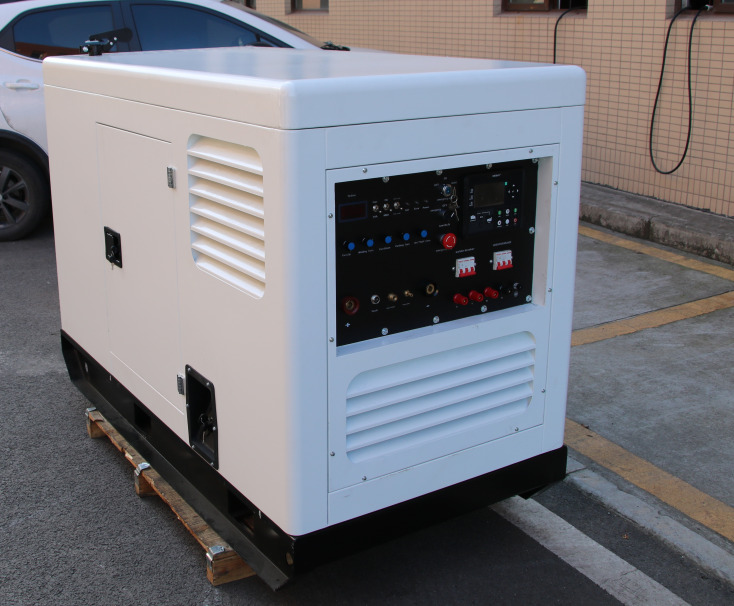

Portable Diesel Welding Generator 400A Silent Diesel Welder YKDH-400ST

1.0 Sets
MOQ
Portable Diesel Welding Generator 400A Silent Diesel Welder YKDH-400ST
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: YKDH-400ST
Rated Voltage: 400V
Rated Current: 28A
Speed: 1500/1800rpm
Frequency: 50/60Hz
Product Name: Portable Diesel Welding Machine Generator 400A Silent Diesel Welder
Engine power/speed: 30kw 1500rpm
Starting method: DC12V electric
No. of cylinder: 4 cylinders, in line
Cooling method: Closed fan water cooling
Welder input current: 18.4kw
Welder output voltage: 40V
Welder output current range: 20A--400A
Insulation class: H
Package dimension: 1800x1000x1500mm
Información básica
Model Number: YKDH-400ST
Pago y Envío Términos
Packaging Details: Standard diesel welding machine generator export package.
Supply Ability: 100 Set/Sets per Month 400A diesel welding generator
Descripción de producto

Portable Diesel Welding Generator 400A Silent Diesel Welder Generator



Product Description







Genset Model YKDH-400ST
Rated power 30kw
Rated speed 1500r/min
Rated frequency 50Hz
Rated voltage 400V
Rated power factor 0.8
Phase 3 phase 4 wire
Exciting mode self-excitation
Voltage reguration mode AVR automatic
Engine Model WP2.3D33E200
Rated power 30KW
Rated speed 1500r/min
Starting mode DC12V electric
Type 4 cylinders, in-line, direct injection, 4 stroke
Intake mode Turbocharged
Bore*Stroke 100*115mm
Oil model CD15W/40GB11122
Fuel consumption 200g/kWh
Oil consumption 1.5g/kWh(75% rated loading)
Cooling mode Closed fan water cooling
Noise 70Dba @7m
Welder Model ZX7-400ST
Rated input power 18.4kw
Rated input current 28A
Rated input voltage 36V
Rated output voltage 40V
Output nonload voltage 68/69/71V
Output current range 20A--400A
TIG arc striking method ST: contact arc
Protection class IP21S
Insulation class H
Overall dimensions 1700 x 900 x 1300mm
Package dimensions 1800 x 1000 x 1500mm











Company Information



 Brand Cooperation:

Our Services

Application area for your reference

Warranty Policy:

Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration, our company provides cost parts maintenance for genset.





Advantages

OUR ADVANTAGES

Warranty Policy:
     Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration, our company provides cost parts maintenance for genset.


Related Products



Packaging & Shipping



Packing Details:



FAQ



Q:Are you a factory or a trading company?

A:We are factory.

Q:What kind of package do you use in delivery?

A:Less than whole container cargo,bubble film;whole container cargo, naked packing with plastic wrap.

Q:Can we customize the genset?

A:Yes,we can customize the color,style and configuration as your demands.

Q:What's your payment term?

A:We accept 30% T/T as the deposit,and balance payment before delivery.

Q:What's the delivery time?

A:Delivery within 7 days after deposit confirmed.
